Bulb - Without Flashlight Feature

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

NOTE: There are two types of cargo lamps available in this vehicle; one with and one without a removable flashlight feature.

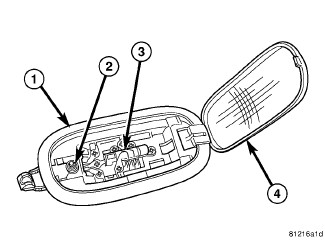

Fig 1: Replacing Cargo Lamp Bulb - Without Flashlight Feature

Courtesy of CHRYSLER LLC

Align the ends of the bulb (3) with the two bulb holders within the cargo lamp housing (1).
Carefully press the bulb firmly and evenly into the bulb holders until it snaps into place.
Swing the notched end of the lens (4) up into position against the housing, then press upward on the lens firmly and evenly until it snaps into the housing.
Reconnect the battery negative cable.
