Section 31 (Starting System): Starter: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

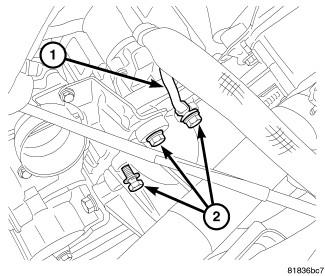

Fig 1: MOUNTING BOLTS

Courtesy of CHRYSLER LLC

Remove air cleaner box and air tube.
Disconnect and isolate the battery negative cable
Remove starter motor mounting bolt.

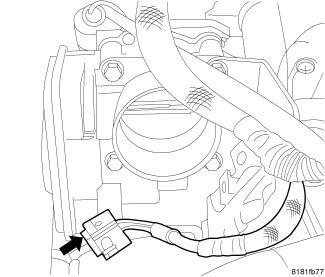

Fig 2: THROTTLE BODY ELECTRICAL CONNECTOR
Courtesy of CHRYSLER LLC
Disconnect the electrical connector at throttle body.

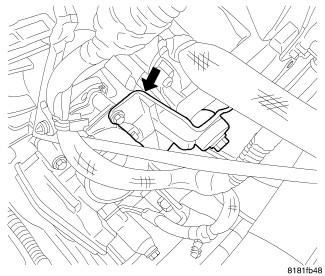

Fig 3: THROTTLE BODY BRACKET
Courtesy of CHRYSLER LLC
Remove throttle body bolts and remove throttle body.

Fig 4: ROTATE STARTER
Courtesy of CHRYSLER LLC
Push starter under intake manifold.
Tip starter nose toward cooling module.
Pull starter up and out.

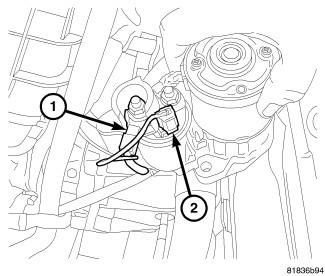

Fig 5: STARTER ELECTRICAL CONNECTION
Courtesy of CHRYSLER LLC
Disconnect starter motor wiring.
Remove starter motor from vehicle.
