SEAL, Torque Converter Hub: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transmission. See Transmission and Transfer Case/Automatic - CVT - Removal .

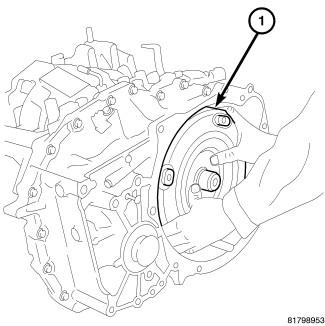

    Fig 1: Removing/Installing Torque Converter
    GC0084464Courtesy of CHRYSLER LLC
  2. Remove torque converter.
  3. Remove torque converter seal using Slide Hammer C-3752 and oil Seal Remover 9667.
