CABLE, Shift Interlock: Adjustments: Adjustment
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
- Remove shift knob and shift bezel. Refer to Body/Interior/BEZEL, Shifter - Removal .

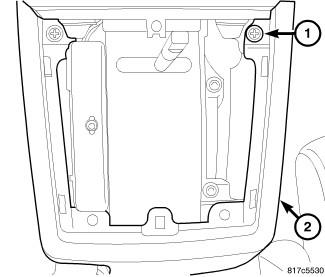

- Remove two screws (1).

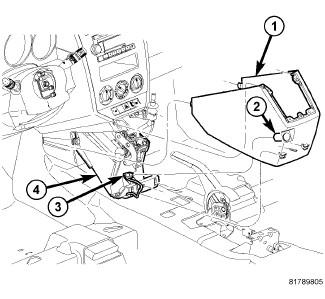

- Pull on side of housing (1) and unsnap housing tabs.
- Disconnect console housing wire connector (2) and instrument panel connector (3).
- Remove from vehicle.
- Adjust interlock cable/system as follows: Pry up on cable adjuster lock to release and allow cable to "self-adjust". Lock cable adjustment by pressing down on the adjuster lock until bottomed at the cable housing.
