Gas Turbo Engine

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before proceeding, refer to Brakes - Warning and Brakes - Caution .
  1. Disconnect and isolate battery negative cable from battery post.
    Fig 1: Depressing Brake Pedal Using Brake Pedal Holding Tool
    GC0098418Courtesy of CHRYSLER LLC
  2. Using a brake pedal holding tool as shown in the illustration above, depress the brake pedal past its first 25 mm (1 inch) of travel and hold it in this position. This will isolate the master cylinder from the brake hydraulic system and will not allow the brake fluid to drain out of the master cylinder reservoir while the lines are disconnected.
  3. Remove the engine appearance cover.
  4. Loosen lower and upper mounting nuts, then remove the exhaust heat shield from the dash panel.
  5. Pull the brake tube bundle routing clips (with tubes) loose from studs on the dash panel.
    Fig 2: Identifying Brake Tubes At Hydraulic Control Unit
    GC0079880Courtesy of CHRYSLER LLC
  6. Remove the primary (4) and secondary (1) brake tubes (from master cylinder) at the hydraulic control unit (7).
  7. Remove the remaining brake tubes (2, 3, 5, 6) at the hydraulic control unit (7).
    Fig 3: Locating ABM Connector Release Tabs
    GC0079881Courtesy of CHRYSLER LLC
    NOTE: Use this figure in the following step to release the ABM harness connector cover. It shows the location of the release tabs.
    Fig 4: Identifying Wiring Harness Connector & ABM
    GC0081322Courtesy of CHRYSLER LLC
    1 - ABM (PART OF ICU)
    2 - WIRING HARNESS CONNECTOR
  8. Disconnect the ABM harness connector from the Antilock Brake Module (ABM). To do so:
    1. Depress the tabs on each side of the connector cover, then
    2. Pull outward and upward on the lower half of the cover until it locks into position pointing straight outward (2). The connector can then be pulled straight outward off the ABM (1).

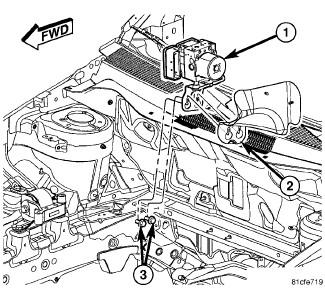

    Fig 5: Identifying ICU, Heat Shield, & Mounting Screws
    GC0102546Courtesy of CHRYSLER LLC
  9. Loosen, but do not remove, the two mounting screws (3) attaching the ICU (1) mounting bracket and heat shield (2) to the body.
  10. Lift the heat shield (2) off the mounting screws (3).
  11. Lift the ICU and mounting bracket (1) off the mounting screws (3).
  12. Move the brake tubes around as necessary without bending them and remove the ICU with bracket through the opening between the A/C lines and the exhaust manifold.
  13. To separate the ABM from the HCU, see Brakes/Hydraulic/Mechanical/INTEGRATED CONTROL UNIT (ICU) - Disassembly .
