Antilock Brake System: Notes
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
This vehicle uses an antilock brake system designated MK25e. Some vehicles are equipped with MK25e antilock brakes only. Other vehicles are equipped with MK25e antilock brakes including Electronic Stability Program (ESP®) and All-Speed Traction Control.
This four-channel antilock brake system uses components of the base brake system, but also features the following components:

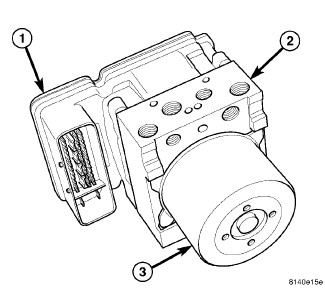

- Integrated Control Unit (ICU) - Hydraulic Control Unit (HCU) (2) and Antilock Brake Module (ABM) (1)
- Wheel Speed Sensors (WSS) - Four sensors (one sensor at each wheel making it a four-channel system)
The MK25e ICU is made up of the Hydraulic Control Unit (HCU) and the Antilock Brake Module (ABM). For additional information on these components, see Brakes/Hydraulic/Mechanical/HYDRAULIC CONTROL UNIT (HCU) - Description and Electrical - Electronic Control Modules/Electronic Control Modules/MODULE, Anti-Lock Brake System - Description .
