ARM, Lower Control: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Vehicle Quick Reference/Hoisting - Standard Procedure

Fig 1: TIRE AND WHEEL MOUNTING
Courtesy of CHRYSLER LLC
Remove the wheel mounting nuts (3), then the tire and wheel assembly (1).

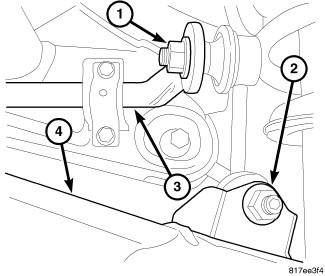

Fig 2: REAR STABILIZER BAR LINK
Courtesy of CHRYSLER LLC
If equipped, while holding the stabilizer bar link lower stud stationary, remove the nut (2) securing the link to the lower control arm (4).

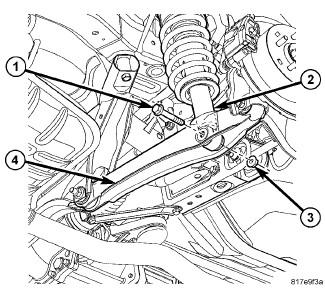

Fig 3: LOWER SHOCK MOUNTING
Courtesy of CHRYSLER LLC
Remove the lower shock mounting nut (3) and bolt (1).

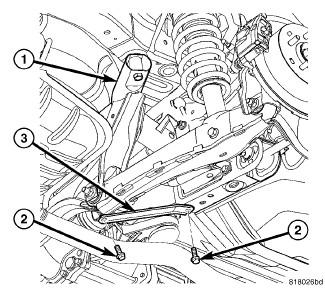

Fig 4: STAY BRACE MOUNTING
Courtesy of CHRYSLER LLC
Remove the stay brace (3) mounting screws (2). Remove the stay brace.

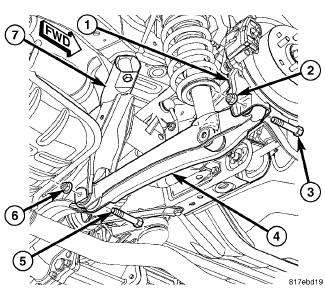

Fig 5: REAR LOWER CONTROL ARM MOUNTING
Courtesy of CHRYSLER LLC
Remove the nut (2) and bolt (3) securing the lower control arm (4) to the trailing link (1).
Remove the nut (6) and bolt (5) securing the lower control arm (4) to the crossmember (7).
Remove the lower control arm (4).
