NOZZLE, Washer: Removal: Front
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

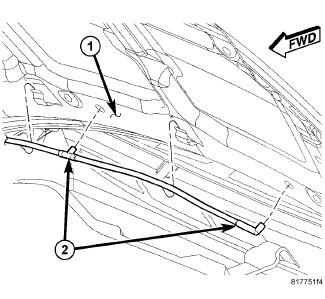

- From the underside of the hood, disengage the rear edge of the silencer pad from the tabs that secure it to the inner hood reinforcement (1) as necessary to access the front washer nozzle hose connections (2).
- Disconnect the hose connection from the barbed nipple of the front washer nozzle.
- From the underside of the hood, release the integral latches of the front washer nozzle (2) and push the nozzle out through the mounting hole toward the top side of the hood (1).
- Remove the nozzle from the top of the hood panel.
