NOZZLE, Washer: Installation: Rear
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

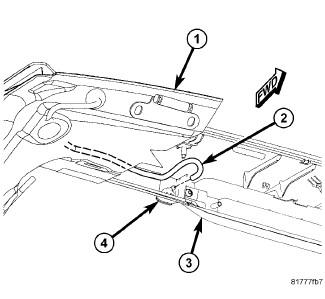

- Position the rear washer nozzle (4) through the mounting hole from the face of the liftgate spoiler (3).
- Using hand pressure, press the nozzle firmly and evenly into the mounting hole until the two integral latch features are fully engaged on the back of the spoiler.
- From the back of the spoiler, reconnect the liftgate washer supply hose (2) to the barbed nipple of the nozzle.
- Reinstall the spoiler onto the liftgate outer panel (1). Refer to Body/Decklid/Hatch/Liftgate/Tailgate/LIFTGATE - Installation .
- Reconnect the battery negative cable.
