Primary Thermostat - Turbocharged Engine
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER LLC

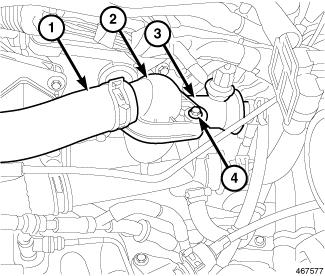

- Position the thermostat on the coolant adapter (3).
- Install the thermostat housing and mounting bolts. Tighten mounting bolts to 11 N.m (97 in. lbs.).
- Install the coolant hose (1) onto the thermostat housing (2).
