Primary Thermostat - Gas Engine
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

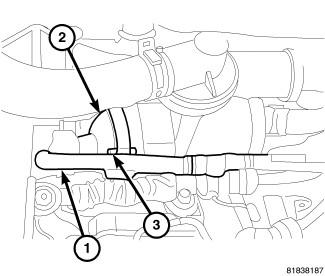

| 1 - COOLANT HOSE |
| 2 - INLET HOUSING |
| 3 - BOLT |
- Position thermostat into the water plenum, aligning air bleed with the location notch on inlet housing (2).
- Install inlet housing (2) onto coolant adapter. Tighten bolts to 9 N.m (79 in. lbs.).
- Connect coolant hose (1).
- Install air filter housing.
- Fill cooling system. See Cooling - Standard Procedure .
