HEATER, Engine Block: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: AIR CLEANER INLET

Courtesy of CHRYSLER LLC

Remove engine cover.
Remove air cleaner inlet.

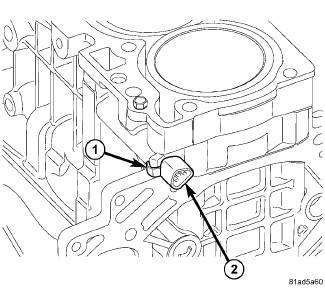

Fig 2: BLOCK HEATER 2.0/2.4L ENGINE
Courtesy of CHRYSLER LLC

1 - RETAINING CLIP

2 - BLOCK HEATER
Detach power cord plug from heater.
Remove retaining clip (1). Remove block heater assembly (2).
