Gas Engine
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

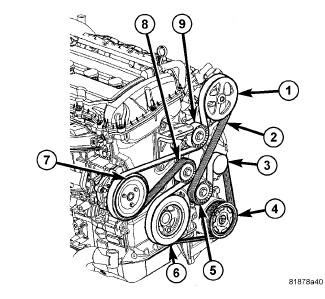

| 1 - POWER STEERING PUMP |
| 2 - ACCESSORY DRIVE BELT |
| 3 - GENERATOR |
| 4 - CRANKSHAFT PULLEY |
| 5 - LOWER IDLER PULLEY |
| 6 - CRANKSHAFT PULLEY |
| 7 - WATER PUMP PULLEY |
| 8 - ACCESSORY DRIVE BELT TENSIONER |
| 9 - UPPER IDLER PULLEY |
NOTE:
When installing drive belt on the pulleys, make sure that belt is properly routed and all V-grooves make proper contact with pulley grooves.
- Install the accessory drive belt (2) around all the pulleys except for the generator pulley (3).
- Using a wrench, rotate accessory drive belt tensioner (8) counterclockwise until accessory drive belt (2) can be installed on the generator pulley (3). Release spring tension onto accessory drive belt (2).
