RAIL, Fuel: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of injury to eyes and skin from contact with fuel. Wear protective clothing and eye protection. Risk of poisoning from inhaling and swallowing fuel. Pour fuel only into appropriately marked and approved containers. Failure to follow these instructions may result in possible serious or fatal injury.

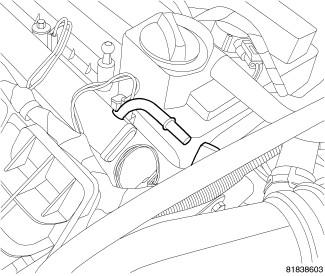

Fig 1: FUEL LINE AT RAIL

Courtesy of CHRYSLER LLC

NOTE: Wrap shop towels around hose to catch any gasoline spillage.

Release the fuel system pressure.
Disconnect the negative battery cable.
Disconnect the fuel line from the fuel rail. Refer to the QUICK-CONNECT FITTINGS .

Fig 2: FUEL LINE CONNECTION
Courtesy of CHRYSLER LLC
Fuel line removed from the fuel rail.

Fig 3: ELECTRICAL CONNECTORS
Courtesy of CHRYSLER LLC
Unlock and disconnect the electrical connectors from the fuel injectors.

Fig 4: HARNESS CLIPS
Courtesy of CHRYSLER LLC
Remove the wiring harness from the fuel rail studs.

Fig 5: ELECTRICAL HARNESS REMOVED
Courtesy of CHRYSLER LLC
Remove the 2 bolts from the fuel rail.

Fig 6: RAIL REMOVAL/INSTALL
Courtesy of CHRYSLER LLC
Remove the fuel rail and injectors from the intake manifold.

Fig 7: RAIL AND INJECTORS
Courtesy of CHRYSLER LLC
Fuel rail removed from intake manifold.

Fig 8: FUEL INJECTOR AND RAIL
Courtesy of CHRYSLER LLC
Remove fuel injectors from fuel rail.
