Headlamp Alignment
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Due to the linear nature of the headlamp cutoff, a properly aimed low beam headlamp will project the top edge of the high intensity pattern on the alignment screen from the horizontal line to 50 millimeters (2 inches) below the horizontal line. No horizontal (right/left) adjustment is required for this headlamp beam pattern. The high beam pattern will be correct when the low beams are properly aimed.
- Turn the headlamps ON and select the LOW beams.

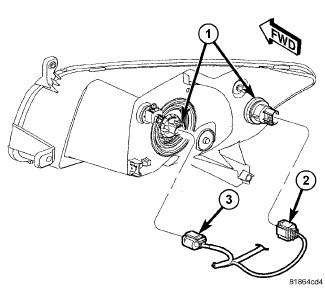

- Rotate the headlamp vertical adjustment screw which is located just inboard of the headlamp bulb (1) to adjust each lamp beam height as required.
