Fog Lamp Alignment

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A properly aimed front fog lamp will project a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead of the lamp.

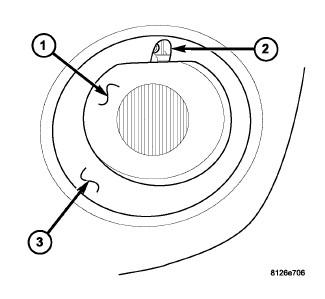

Fig 1: Locating Fog Lamp Vertical Adjustment Screw
GC0102578Courtesy of CHRYSLER LLC
  1. Turn the fog lamps ON.
  2. Rotate the fog lamp vertical adjustment screw (2) on each lamp to adjust the beam height as required.
