MOTOR, Headlamp Leveling, Export: Removal: Removal

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Lamp Unit

Courtesy of CHRYSLER LLC

Remove Front Lamp Unit. See Electrical/Lamps/Lighting - Exterior/UNIT, Front Lamp - Removal .

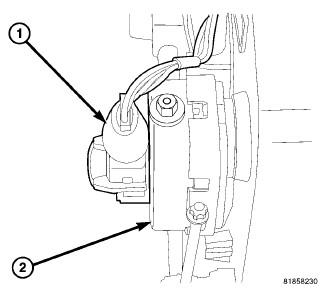

Fig 2: Headlamp Leveling Motor Electrical Connector
Courtesy of CHRYSLER LLC
Disconnect the headlamp leveling motor (2) electrical connector (1).

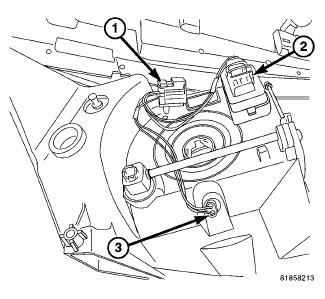

Fig 3: Horizontal Alignment Screw Located Next To & Inboard Of Headlamp Leveling Motor
Courtesy of CHRYSLER LLC
Remove the one screw (3) retaining the horizontal adjustment assembly (2) to allow the motor to swing far enough to remove.
Rotate leveling motor 1/4 turn counter-clockwise. This will free leveling motor housing from the headlamp unit (1).
Pull leveling motor straight from headlamp unit (1). Significant force will be required to unsnap motor control arm from lens reflector.
NOTE: The headlamp leveling motor control arm is snapped into the lens reflector mechanism very securely. Use a firm, steady pull to disengage motor arm from reflector.
Remove leveling motor from front lamp unit.
