LAMP, Tail: Installation: Bulbs

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.

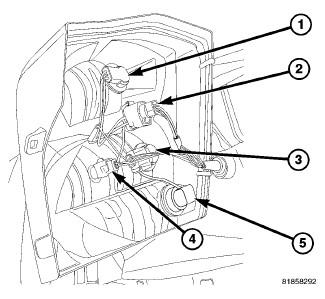

Fig 1: Tail Lamp Unit Bulbs

Courtesy of CHRYSLER LLC

There are a total of four possible bulbs in the tail lamp unit:

Back-Up Lamp (4)
Park/Brake Lamp (1)
Rear Fog Lamp (5) - Export Only
Turn Signal (3)

Fig 2: Tail Lamp Unit Bulbs

Courtesy of CHRYSLER LLC

Push bulb into the bulb socket.
Install bulb socket into tail lamp assembly. Rotate the socket clockwise until fully seated.
Install the tail lamp unit. See Electrical/Lamps/Lighting - Exterior/LAMP, Tail - Installation .
