Instrument Panel

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LHD driver side air outlet shown. RHD and passenger side outlet similar.
NOTE: Take the proper precautions to protect the faces of the instrument panels and covers from cosmetic damage while performing this procedure.

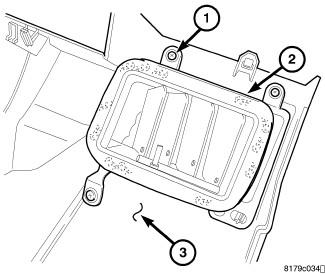

Fig 1: Air Outlet-Instrument Panel
GC0103526Courtesy of CHRYSLER LLC
  1. Depending on the air outlet being serviced, remove the steering column opening cover or the IP base panel. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Removal or Body/Instrument Panel/PANEL, Instrument - Removal .
  2. Place the steering column opening cover or IP base panel on a workbench.
  3. Remove the four screws (1) that secure the air outlet (2) to the cover or panel (3) and remove the outlet.
