Beverage Cooler
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

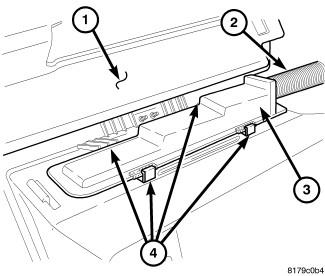

LHD model shown. RHD model similar.
- Position the beverage cooler outlet (3) to the top of the storage bin and engage the four retaining tabs (4) by sliding the outlet toward the center of the instrument panel top cover (1). Make sure the tabs are fully engaged.
- Connect the hose (2) to the beverage cooler outlet.
- Install the instrument panel top cover. Refer to Body/Instrument Panel/COVER, Instrument Panel - Installation .
