Outlet, Air: Description: Description

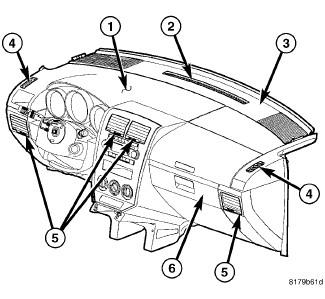

There is one defroster air outlet (2) located on the top of the instrument panel (1). The airflow from the defroster outlet is directed by fixed vanes in the outlet and cannot be adjusted. The defroster air outlet is not serviceable from the instrument panel cover.
There are two side window demister air outlets (4). One located on each end of the instrument panel top cover. The airflow from the side window demister air outlets is directed by fixed vanes in the outlets and cannot be adjusted. The side window demister air outlets are not serviceable from the instrument panel top cover. Refer to Body/Instrument Panel/COVER, Instrument Panel - Removal .
There are four rectangular instrument panel air outlets (5). One air outlet is located near each outboard end of the instrument panel facing the rear of the vehicle and two air outlets are located at the top of the instrument panel center bezel. Each of the instrument panel air outlets contain movable vanes that can direct or shut off the flow of the conditioned air leaving each of the instrument panel outlets. The driver and passenger side air instrument panel air outlets can be serviced separately. The center outlets are only serviced with the center bezel. Refer to Body/Instrument Panel/BEZEL, Instrument Panel - Removal .
Some models with A/C are equipped with a cooled beverage storage bin located in the instrument panel. Vehicles so equipped have an outlet, which, when opened with the A/C on, allows cooled air to flow into the bin.
