Duct, Instrument Panel Demister: Installation: Installation

WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The left and right side demister ducts are serviced only as an assembly with the left or right side instrument panel duct.
NOTE: Illustration shown with instrument panel removed from vehicle for clarity.

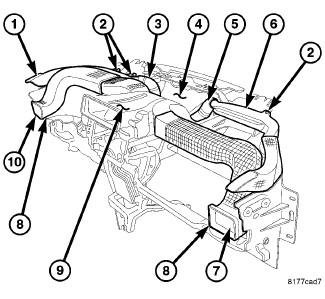

Fig 1: Left and Right Side Instrument Panel Ducts
GC0103522Courtesy of CHRYSLER LLC
NOTE: LHD model shown. RHD model similar.
  1. Position the left and right side demister ducts (1 and 6) and the left and right side instrument panel ducts (7 and 10) onto the top of the instrument panel as assemblies.
  2. Connect the left and right side instrument panel ducts to the center duct (9). Make sure the ducts are fully engaged to each other.
  3. Install the push-pin fastener (8) that secures each instrument panel duct to the instrument panel support.
  4. Install the screws (2) that secure each demister duct to the instrument panel support. Tighten the screws to 2.2 N.m (20 in. lbs.).
  5. Connect the left and right side demister hoses (3 and 5) to the defroster duct (4). Make sure the hoses are fully engaged to the defroster and demister ducts.
  6. Install the instrument panel top cover. Refer to Body/Instrument Panel/COVER, Instrument Panel - Installation .
