Vehicle Preparation
WARNING: This page is about a different car, the 2009 Dodge Caliber. However, it is still accessible from the selected car via links, so may be relevant.
Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.
INDEX
| DESCRIPTION | FIGURE |
|---|---|

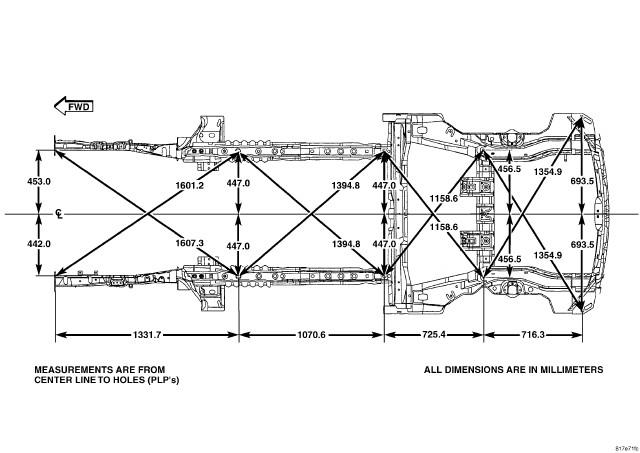

| FRAME DIMENSIONS (PLAN VIEW) | Fig 1 |

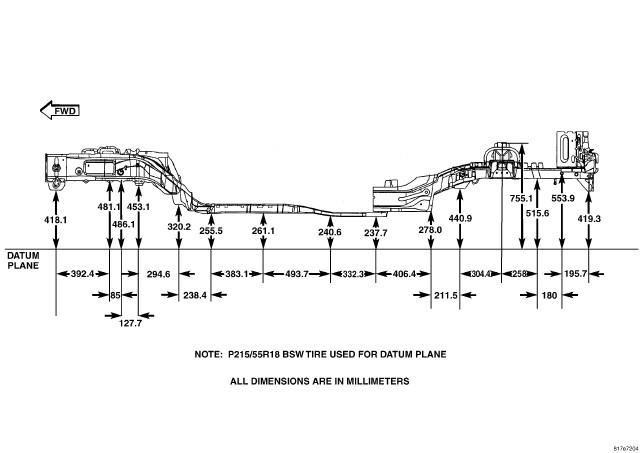

| FRAME DIMENSIONS (SIDE VIEW) | Fig 2 |
