P2074-Map/TPS Correlation - High Airflow/Vacuum Leak Detected: Notes

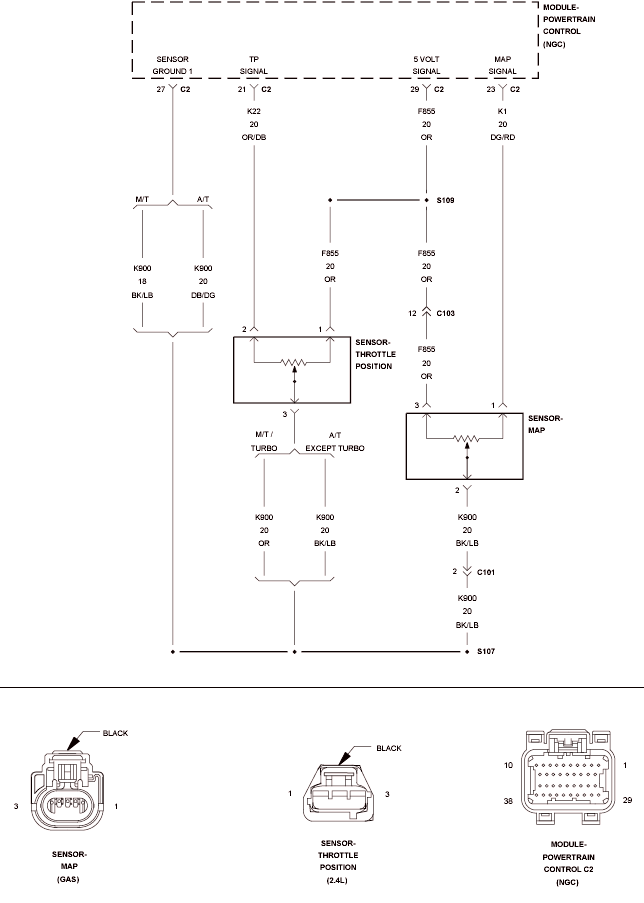

Fig 1: MAP/Throttle Position Sensor Circuit

GC0117139

Courtesy of CHRYSLER LLC
