P0452-NVLD Pressure Switch Stuck Closed: Notes

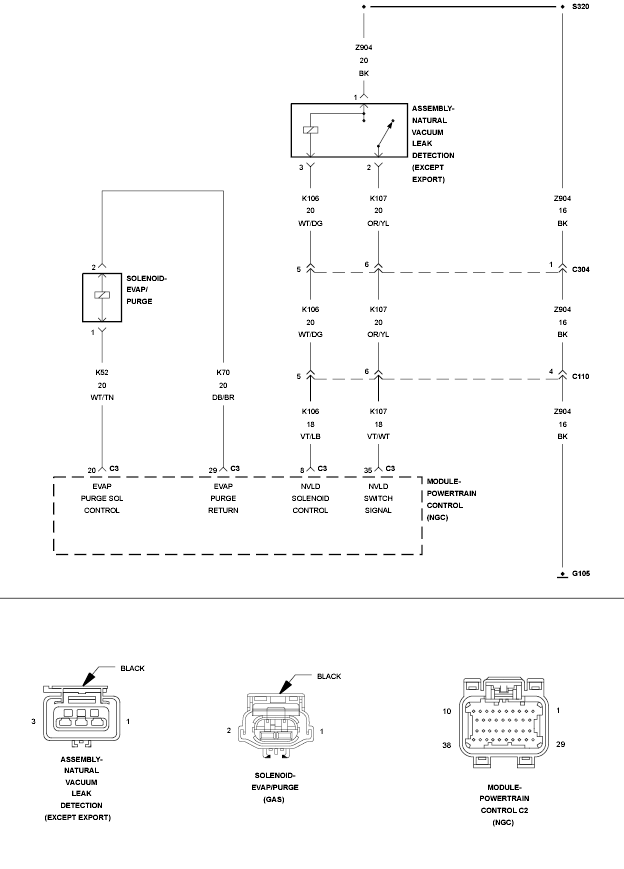

Fig 1: EVAP System Circuit

GC0117249

Courtesy of CHRYSLER LLC
