No Response With A No Start Condition: Notes

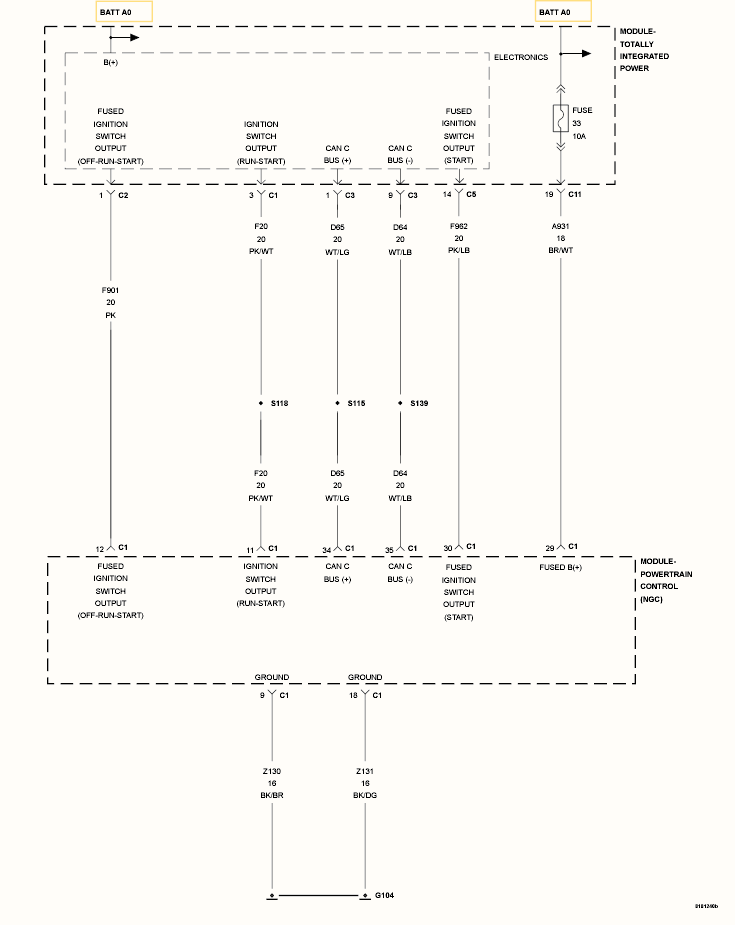

Fig 1: Ignition System Circuit

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

Possible Causes
(K334) ASD CONTROL CIRCUIT SHORTED TO BATTERY VOLTAGE
(K334) ASD CONTROL CIRCUIT OPEN
(K334) ASD CONTROL CIRCUIT SHORTED TO GROUND
(A931) PCM FUSED B+ CIRCUIT
(F20) (F901) PCM FUSED IGNITION SWITCH OUTPUT CIRCUITS
(Z130/Z131) PCM GROUND CIRCUITS
(D65) CAN C BUS (+) CIRCUIT OPEN
(D64) CAN C BUS (-) CIRCUIT OPEN
PCM
