Checking The Cooling Fan Performance: Notes

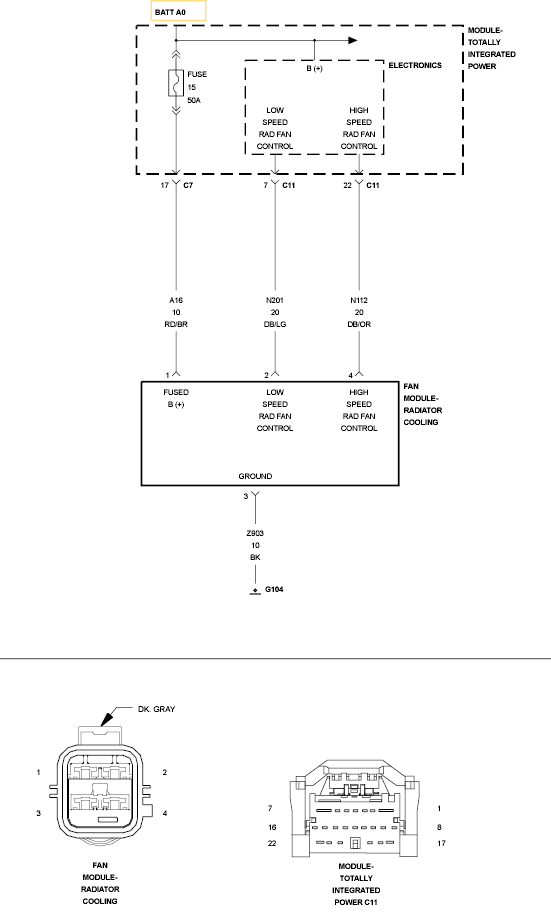

Fig 1: Cooling Fan Circuit

GC0117266

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
