Swirl Valve Actuator Solenoid

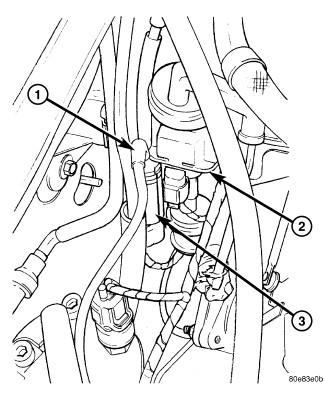

The swirl actuator solenoid is mounted next to the coolant recovery pressure container behind the wastegate solenoid
.
Courtesy of CHRYSLER LLC
| 1 - SWIRL ACTUATOR OUTPUT HOSE |
| 2 - WASTEGATE SOLENOID |
| 3 - SWIRL ACTUATOR SOLENOID |
