Intake Manifold Swirl Valve

The intake manifold swirl valve is located in the bottom of the intake manifold .

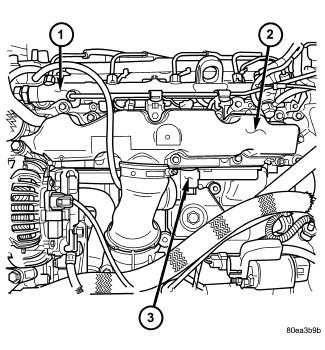

Fig 1: INTAKE MANIFOLD SWIRL VALVE LOCATION

Courtesy of CHRYSLER LLC

1 - FUEL RAIL

2 - INTAKE MANIFOLD

3 - INTAKE MANIFOLD SWIRL VALVE
