Throttle Body: Removal: 2.4L

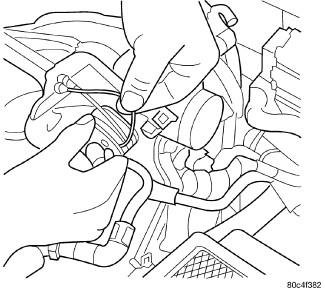

Fig 1: Throttle Cable Attachment to Throttle Body

Courtesy of CHRYSLER LLC

Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
Remove the negative battery cable.
Remove the engine cover or throttle control shield if equipped.
Remove throttle cable from the throttle body cam.

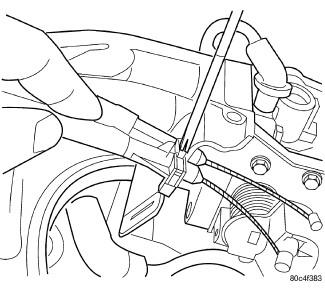

Fig 2: Disconnecting Throttle Cable
Courtesy of CHRYSLER LLC
Lift the retaining tabs on the cable and slide cable out of bracket.
If equipped with speed control, remove speed control cable from throttle lever by sliding clasp out hole used for throttle cable.

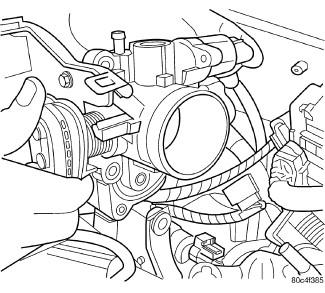

Fig 3: Throttle Body Bolts
Courtesy of CHRYSLER LLC
Remove EVAP purge hose from nipple on throttle body.
Remove the electrical connectors from the throttle position sensor and idle air control motor.
Remove 2 screws holding cable mounting bracket and support bracket.
Remove throttle body mounting bolts.

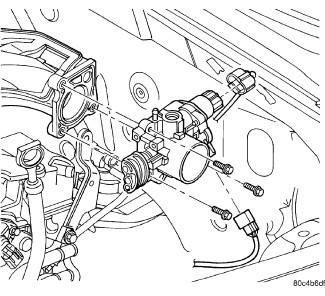

Fig 4: Throttle Body Removal/Installation
Courtesy of CHRYSLER LLC
Lift throttle body straight up and away to remove the throttle body.
