2.4L Turbo

Fig 1: THROTTLE CONTROL SHIELD
GC0115115Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Unlock and disconnect the electrical connector for the inlet air temperature sensor.
  3. Unlock and disconnect the electrical connectors from the idle air control motor and throttle position sensor.
  4. Remove the throttle control shield.
    Fig 2: THROTTLE CABLES
    GC0114325Courtesy of CHRYSLER LLC
  5. Remove the throttle cable from the throttle body cam.

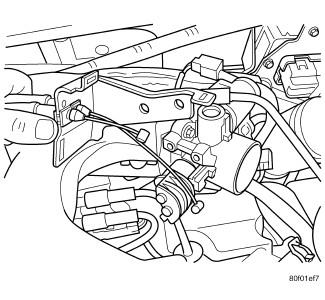

    Fig 3: THROTTLE CABLE BRACKET
    GC0114326Courtesy of CHRYSLER LLC
  6. If equipped with speed control, remove speed control cable from the throttle cam by sliding clasp out hole used for throttle cable.
  7. Remove the 2 screws for the throttle cable bracket.
  8. Remove bracket.
    Fig 4: THROTTLE BODY BOLTS
    GC0115181Courtesy of CHRYSLER LLC
  9. Disconnect the throttle body inlet hose and remove from throttle body.
  10. Disconnect the purge hose from the throttle body.
  11. Remove the 3 bolts from the throttle body.
    Fig 5: THROTTLE BODY
    GC0115182Courtesy of CHRYSLER LLC
  12. Remove the throttle body.

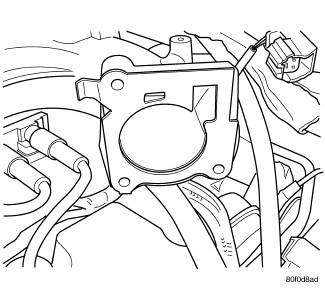

    Fig 6: THROTTLE BODY GASKET
    GC0115183Courtesy of CHRYSLER LLC
  13. Clean and replace gasket.
