2.4L Turbo

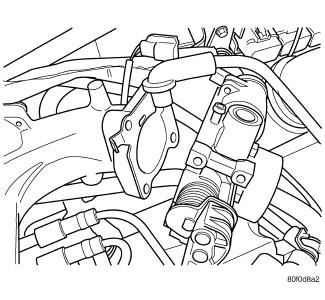

Fig 1: THROTTLE BODY

Courtesy of CHRYSLER LLC

Make sure the gasket is in place and install the throttle body.

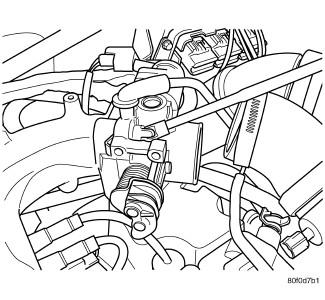

Fig 2: THROTTLE BODY BOLTS
Courtesy of CHRYSLER LLC
Install the 3 bolts to the throttle body and tighten to 12 ±2.25 N.m (105 in. lbs.).
Connect the purge hose to the throttle body.
Connect the throttle body inlet hose to the throttle body and tighten clamp.

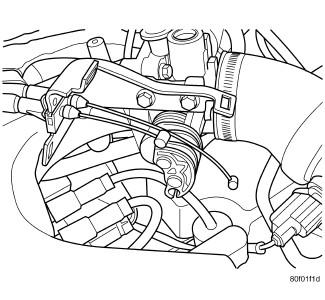

Fig 3: THROTTLE CABLES
Courtesy of CHRYSLER LLC
Install bracket.
Install the 2 screws for the throttle cable bracket and tighten to N.m 12 ±2.25 (105 in. lbs.).
If equipped with speed control, install speed control cable retaining tab into bracket and cable to the throttle cam by sliding clasp in the hole used for throttle cable.
Install the throttle cable retaining tab into bracket and cable to the throttle body cam.

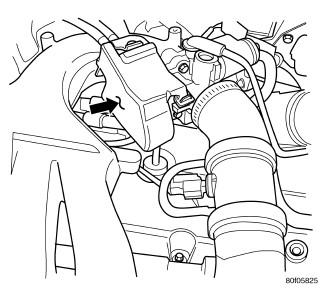

Fig 4: THROTTLE CONTROL SHIELD
Courtesy of CHRYSLER LLC
Install the throttle control shield.
Connect and lock the electrical connectors from the idle air control motor and throttle position sensor.
Connect and lock the electrical connector for the inlet air temperature sensor.
Connect the negative battery cable.
