1/1 Upstream - 2.4L

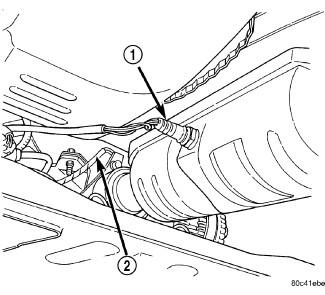

Fig 1: Oxygen Sensor 1/1 Upstream
GC0115069Courtesy of CHRYSLER LLC
1 - DOWN STREAM O2 SENSOR
2 - UP STREAM O2 SENSOR
  1. Remove the air cleaner lid and makeup air hose.
  2. Remove the negative battery cable.
  3. Disconnect electrical connector from sensor.
  4. Remove sensor using an oxygen sensor special tool C-4907.
