SENSOR, Crankshaft Position: Removal: Removal

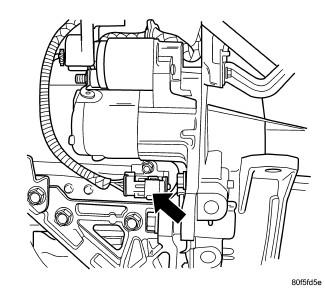

Fig 1: CRANKSHAFT POSITION SENSOR LOCATION

Courtesy of CHRYSLER LLC

The Crankshaft Position Sensor is in the front of the engine block just under the starter motor.

1. Disconnect the negative battery cable.
2. Raise vehicle and support.
   Fig 2: CRANKSHAFT POSITION SENSOR

   Courtesy of CHRYSLER LLC
3. Unlock and disconnect the electrical connector to the crankshaft position sensor.
4. Remove the crankshaft position sensor bolt.
5. Remove the sensor.
