INJECTOR(S), Fuel: Installation: 2.4L
Courtesy of CHRYSLER LLC

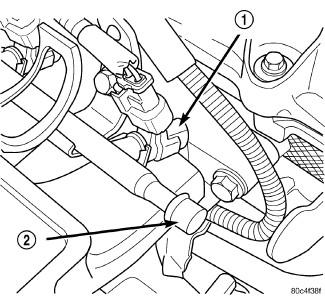

| 1 - FUEL INJECTOR |
| 2 - FUEL TEST PORT |
- Install the fuel injectors to the fuel rail.
- Apply a light coating of clean engine oil to the O-ring on the nozzle end of each injector.
- Insert fuel injector nozzles into openings in intake manifold. Seat the injectors in place. Tighten fuel rail bolts to 22.5 N.m (16.5 ft. lbs.).
- Attach electrical connectors to fuel injectors.
- Connect fuel supply tube to fuel rail. Refer to FITTING, Quick Connect .
- Install Intake Manifold. Refer to Engine/Manifolds/MANIFOLD, Intake - Installation
.
- Install the engine cover or throttle control shield if equipped.
- Install the negative battery cable.
- Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose. Tighten air inlet tube clamps to 3 N.m (25 in. lbs.).
