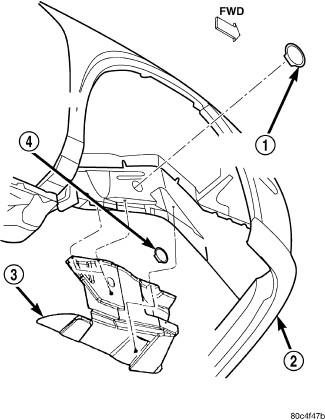

Fig 1: Splash Shield

Courtesy of CHRYSLER LLC

Disconnect negative battery cable.
Raise vehicle on hoist. Remove right front wheel.
Remove the right splash shield (3).

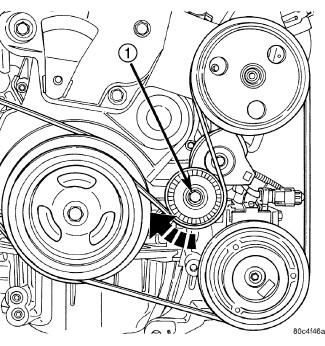

Fig 2: Accessory Belt-Removing
Courtesy of CHRYSLER LLC
Remove accessory drive belts (refer to ACCESSORY DRIVE ).
Remove crankshaft damper. See Engine/Engine Block/DAMPER, Vibration - Removal .

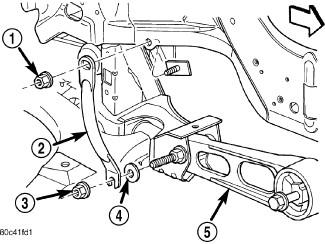

Fig 3: Pencil Strut
Courtesy of CHRYSLER LLC
Remove the lower torque strut (5). See Engine/Engine Mounting/STRUT, Torque - Removal .

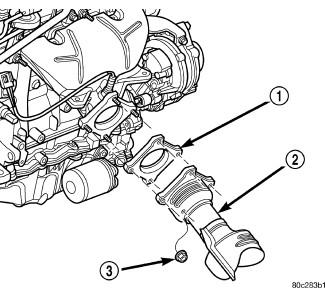

Fig 4: Exhaust Manifold To Pipe Connection
Courtesy of CHRYSLER LLC
Disconnect catalytic converter (2) from manifold.
Disconnect A/C pressure switch at rear of compressor housing.
Lower vehicle and support engine with a jack.

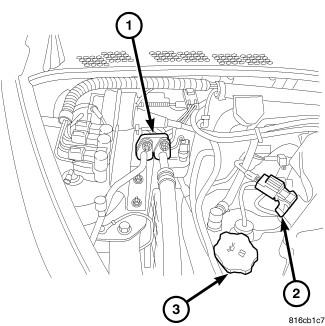

Fig 5: A/C LINES
Courtesy of CHRYSLER LLC
Discharge A/C system and disconnect A/C lines at coupling block (1) (refer to HEATING & AIR CONDITIONING - SERVICE INFORMATION ).

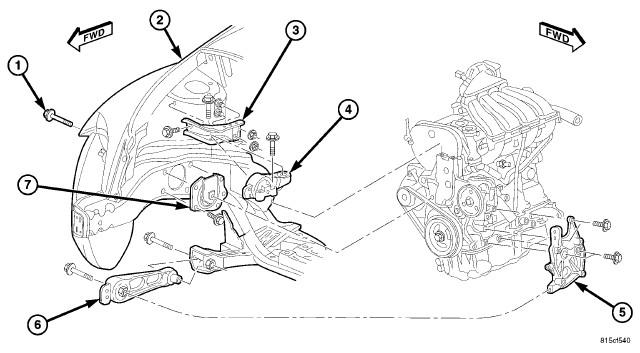

Fig 6: RIGHT MOUNT
Courtesy of CHRYSLER LLC
Remove upper torque strut (4). See Engine/Engine Mounting/STRUT, Torque - Removal .
Remove screw attaching ground strap to strut bracket.
Remove upper torque strut bracket (3) from strut tower.
Remove upper radiator closure panel. Refer to Body/Exterior/CROSSMEMBER, Radiator - Removal .

Fig 7: RIGHT MOUNT
Courtesy of CHRYSLER LLC
Remove power steering pump and bracket. Set pump aside. Do not disconnect lines from pump.
With engine properly supported, remove right engine mount through bolt (1).

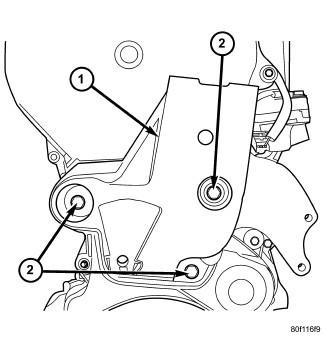

Fig 8: Engine Support Bracket
Courtesy of CHRYSLER LLC
Raise engine with jack until engine support bracket bolts (2) are accessible .
Remove engine support bracket (1).

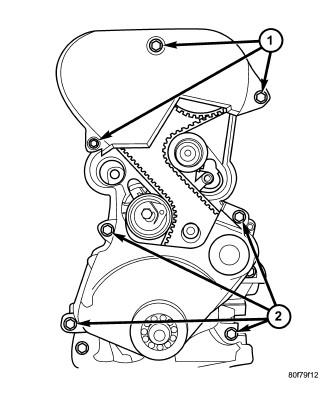

Fig 9: Front Timing Belt Covers
Courtesy of CHRYSLER LLC
Remove timing belt cover fasteners (1,2) and remove cover.
