Timing Belt

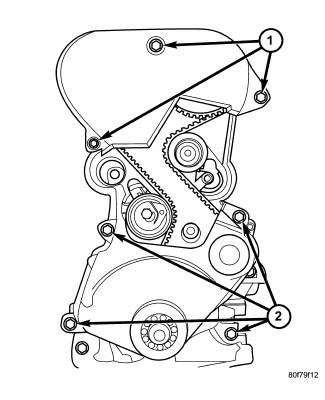

Fig 1: Front Timing Belt Covers

Courtesy of CHRYSLER LLC

1 - UPPER COVER FASTENERS

2 - LOWER COVER FASTENERS

Disconnect negative battery cable.

Remove upper and lower front timing belt covers . See Engine/Valve Timing/COVER(S), Engine Timing - Removal .

Fig 2: Crankshaft and Camshaft Timing

Courtesy of CHRYSLER LLC

1 - CAMSHAFT TIMING MARKS

2 - CRANKSHAFT TDC MARKS

3 - TRAILING EDGE OF SPROCKET TOOTH

CAUTION: When aligning crankshaft and camshaft timing marks always rotate engine from crankshaft. Camshaft should not be rotated after timing belt is removed. Damage to valve components may occur. Always align timing marks before removing timing belt.

Before the removal of the timing belt, rotate crankshaft until the TDC mark on oil pump housing aligns with the TDC mark on crankshaft sprocket (2) (trailing edge of sprocket tooth) .
NOTE: The crankshaft sprocket TDC mark (2) is located on the trailing edge of the sprocket tooth. Failure to align trailing edge of sprocket tooth to TDC mark on oil pump housing will cause the camshaft timing marks to be misaligned.

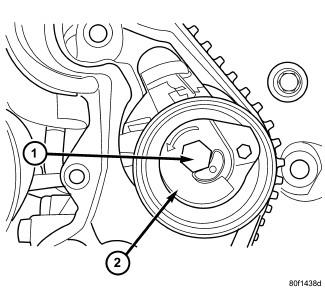

Fig 3: Timing Belt Tensioner
Courtesy of CHRYSLER LLC

1 - LOCK BOLT

2 - TOP PLATE
Loosen timing belt tensioner lock bolt (1) .
Insert Allen wrench into the hexagon opening located on the top plate (2) of the belt tensioner pulley . Rotate the top plate (2)CLOCKWISE until there is enough slack in timing belt to allow for removal.
Remove timing belt.
CAUTION: If timing belt was damaged due to incorrect tracking (alignment), the belt tensioner pulley and bracket must be replaced as an assembly. See Engine/Valve Timing/TENSIONER, Engine Timing - Removal .
