Camshaft Sprocket(S)

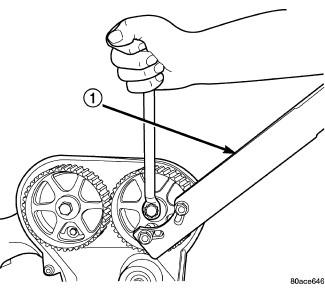

Fig 1: Camshaft Sprocket-Removal/Installation
GC0114541Courtesy of CHRYSLER LLC
  1. Remove upper and lower front timing belt covers. See Engine/Valve Timing/COVER(S), Engine Timing - Removal .
  2. Remove timing belt. See Engine/Valve Timing/BELT and SPROCKETS, Timing - Removal .
  3. Use Camshaft Sprocket Holder 6847 (1) to hold camshaft sprockets while removing the sprocket bolt(s) . Remove camshaft sprocket(s).
