Crankshaft Sprocket

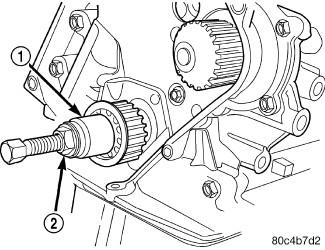

| 1 - CRANKSHAFT DAMPER/SPROCKET INSTALLER 6792 |
| 2 - TIGHTEN NUT TO INSTALL |
CAUTION:
The crankshaft sprocket is set to a predetermined depth from the factory for correct timing belt tracking. If removed, use of Crankshaft Damper/Sprocket Installer 6792 is required to set the sprocket to original installation depth. An incorrectly installed sprocket will result in timing belt and engine damage.
- Install crankshaft sprocket using Crankshaft Damper/Sprocket Installer 6792 (1) .
- Install timing belt. See Engine/Valve Timing/BELT and SPROCKETS, Timing - Installation .
- Install upper and lower front timing belt covers. See Engine/Valve Timing/COVER(S), Engine Timing - Installation .
