Camshaft Sprocket(S)

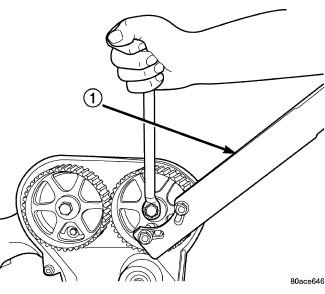

| 1 - CAMSHAFT SPROCKET HOLDER 6847 |
CAUTION:
Do not use an impact wrench to tighten camshaft sprocket bolts. Damage to the camshaft-to-sprocket locating dowel pin may occur.
- Install camshaft sprockets. Hold sprockets with Camshaft Sprocket Holder 6847 (1) while tightening center bolt to 115 N.m (85 ft. lbs.) .
- Install timing belt. See Engine/Valve Timing/BELT and SPROCKETS, Timing - Installation .
- Install upper and lower front timing belt covers. See Engine/Valve Timing/COVER(S), Engine Timing - Installation .
