WASTEGATE Solenoid

Fig 1: Wastegate Solenoid & Electrical Connectors
GC0114725Courtesy of CHRYSLER LLC
  1. Disconnect the electrical connectors (3, 4 and 5).
  2. Remove the nuts (1) the securing the solenoid mounting bracket to the shock tower.

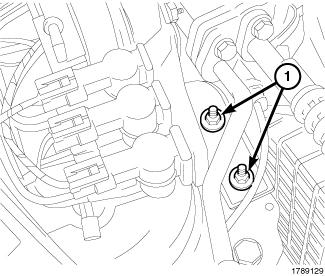

    Fig 2: Nuts Securing Solenoid Mounting Bracket
    GC0114726Courtesy of CHRYSLER LLC
  3. Disconnect vacuum harness connector from solenoid.
  4. Push on the solenoid lock tab and slide solenoid off the bracket.
    Fig 3: Solenoid Mounting Bracket
    GC0114727Courtesy of CHRYSLER LLC
  5. If necessary, remove the solenoid mounting bracket.
