Oil Supply Line

Fig 1: Turbocharger Brackets and Heat Shields

GC0114457

Courtesy of CHRYSLER LLC

1 - UPPER/LOWER HEAT SHIELDS

2 - TURBOCHARGER SUPPORT BRACKET

3 - ELBOW

4 - ELBOW SUPPORT BRACKET

Raise vehicle on hoist.

Remove elbow support bracket (4).

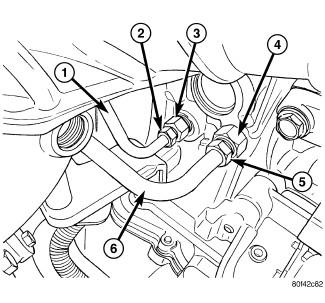

Fig 2: Oil Supply Line - Engine Block Fitting

GC0114722

Courtesy of CHRYSLER LLC

1 - OIL SUPPLY LINE

2 - FLARED FITTING - 31 N.m (23 ft. lbs.)

3 - BRASS FITTING - 41 N.m (30 ft. lbs.)

4 - BRASS FITTING - 41 N.m (30 ft. lbs.)

5 - FLARED FITTING - 31 N.m (23 ft. lbs.)

6 - OIL COOLER COOLANT LINE

Disconnect oil supply line flared fitting (2) from brass fitting (3) at engine block.
Lower vehicle.

Disconnect oil supply line flared fitting (2) from brass fitting (3) at turbocharger.

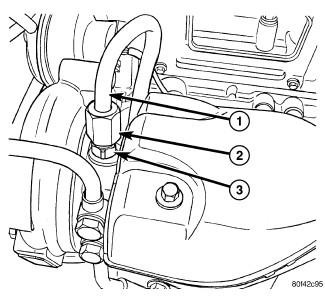

Fig 3: Oil Supply Line - Turbocharger Fitting

GC0114723

Courtesy of CHRYSLER LLC

1 - OIL SUPPLY LINE

2 - FLARED FITTING - 31 N.m (23 ft. lbs.)

3 - BRASS FITTING - 41 N.m (30 ft. lbs.)

Remove oil supply line (1).
