Coolant Supply Line

Fig 1: Turbocharger Lines and Hoses
GC0114501Courtesy of CHRYSLER LLC
  1. Raise vehicle on hoist.

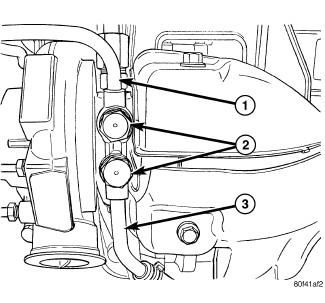

    Fig 2: Coolant Lines - Banjo Fittings
    GC0114719Courtesy of CHRYSLER LLC
    1 - COOLANT RETURN LINE
    2 - BANJO BOLTS - 30 N.m (22 ft. lbs.)
    3 - COOLANT SUPPLY LINE
  2. Drain cooling system. Refer to Cooling - Standard Procedure .
  3. Remove banjo bolt (2) from coolant supply line (3) at turbocharger.

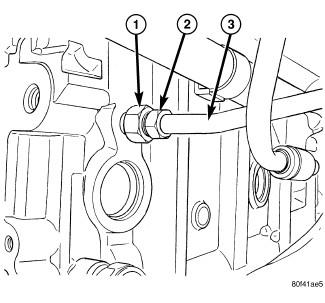

    Fig 3: Coolant Supply Line - Engine Block Fitting
    GC0114720Courtesy of CHRYSLER LLC
    1 - BRASS FITTING - 41 N.m (30 ft. lbs.)
    2 - FLARED FITTING - 31 N.m (23 ft. lbs.)
    3 - COOLANT SUPPLY LINE
  4. Disconnect coolant supply line (3) flared fitting (2) from brass fitting (1) at engine block.
  5. Remove coolant supply line.
