Upper Intake Manifold: Turbo

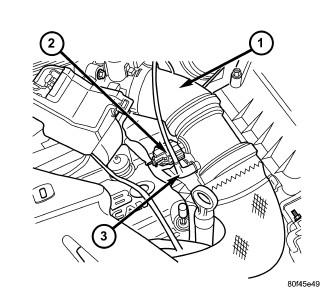

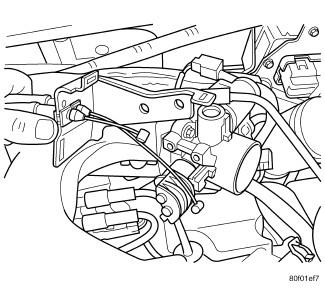

Fig 1: IAT Sensor

Courtesy of CHRYSLER LLC

NOTE: This engine could be equipped with an aluminum Intake manifold or a plastic intake manifold.

Disconnect negative battery cable.
Disconnect the inlet air temperature (IAT) sensor (2) connector.
Disconnect the throttle inlet pressure (TIP) hose (3.

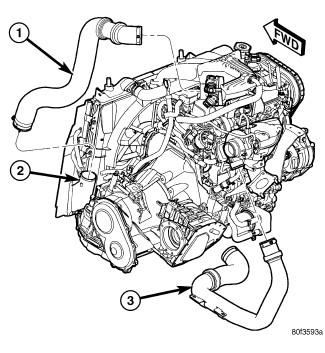

Fig 2: Charge Air Cooler Hoses
Courtesy of CHRYSLER LLC
Disconnect charge air cooler hose at throttle body (1).
Disconnect idle air control (IAC) motor and throttle position sensor connectors.

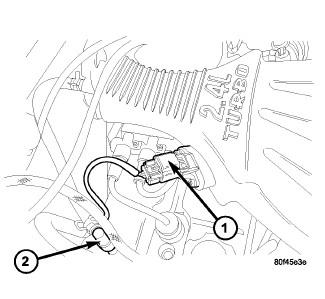

Fig 3: MAP Sensor
Courtesy of CHRYSLER LLC
Disconnect the MAP sensor connector (1).

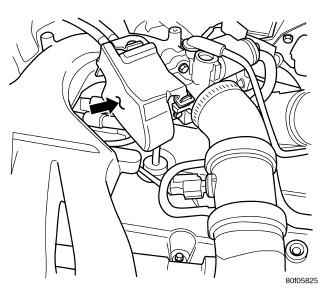

Fig 4: Throttle Control Shield
Courtesy of CHRYSLER LLC
Remove the throttle control shield.

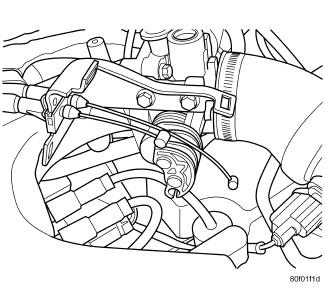

Fig 5: Throttle Cables
Courtesy of CHRYSLER LLC
Remove the throttle cable from the throttle body lever.
If equipped with speed control, remove speed control cable from the throttle lever by sliding clasp out hole used for throttle cable.

Fig 6: Throttle Cable Bracket
Courtesy of CHRYSLER LLC
Remove the 2 screws for the throttle cable bracket.
Reposition throttle cable bracket .
Remove intake manifold cover.
NOTE: To remove intake manifold cover, start with clips near throttle body.

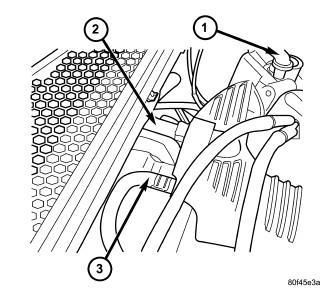

Fig 7: Vacuum Hoses
Courtesy of CHRYSLER LLC
Disconnect brake booster hose (3) and PCV hose (3) from intake manifold.
Disconnect purge solenoid hose (1) from throttle body.

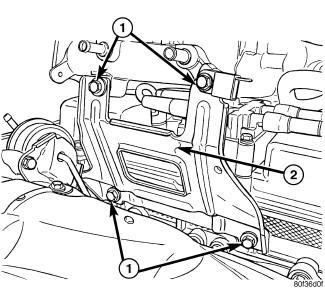

Fig 8: Support Bracket
Courtesy of CHRYSLER LLC
Remove upper intake manifold support bracket (2).
Remove upper intake manifold fasteners (1).
Remove upper intake manifold.

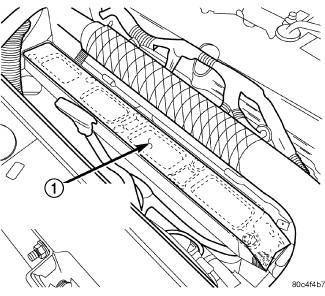

Fig 9: Cover Lower Intake Manifold Openings
Courtesy of CHRYSLER LLC
If further service is required, cover the lower intake manifold openings (1) to prevent foreign materials from entering the engine.
