Upper Intake Manifold: Non-Turbo

Fig 1: Positive Crankcase Ventilation

Courtesy of CHRYSLER LLC

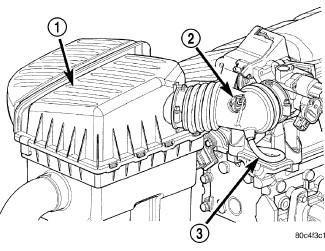

Disconnect inlet air temperature sensor and make-up air hose (1) from clean air hose.

Fig 2: Clean Air Hose
Courtesy of CHRYSLER LLC
Remove air cleaner housing (1) and clean air hose assembly.
Disconnect negative cable from battery.

Fig 3: Throttle Cables
Courtesy of CHRYSLER LLC

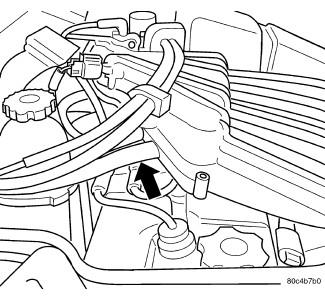

Remove throttle and speed control cables from throttle lever and bracket.

Fig 4: MAP Sensor
Courtesy of CHRYSLER LLC

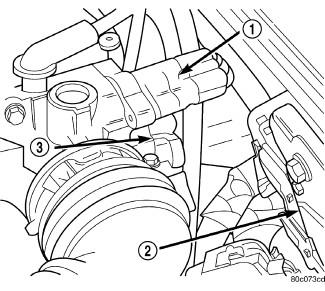

Disconnect manifold absolute pressure (MAP) sensor (1).

Fig 5: Idle Air Control (IAC) Motor and Throttle Position Sensor (TPS) Wiring Connectors
Courtesy of CHRYSLER LLC

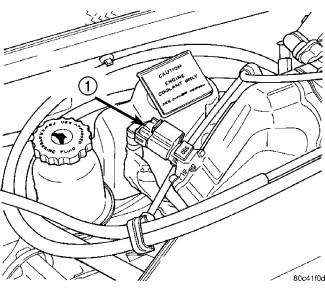

Disconnect idle air control (IAC) motor (1) and throttle position sensor (TPS) (3) wiring connectors.

Fig 6: Proportional Purge Hoses
Courtesy of CHRYSLER LLC

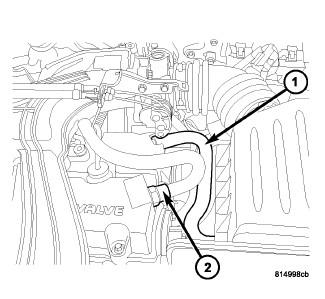

Disconnect proportional purge hoses (1).

Fig 7: Brake Booster Hose
Courtesy of CHRYSLER LLC
Disconnect brake booster hose.
Disconnect PCV hose from intake manifold.

Fig 8: INTAKE MANIFOLD SUPPORT
Courtesy of CHRYSLER LLC

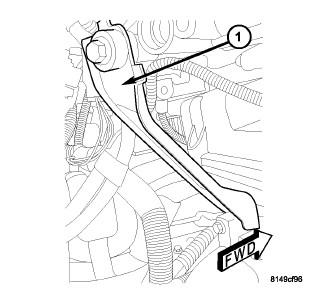

Remove rear intake manifold support bracket (1).
Remove upper intake manifold fasteners.
Remove upper intake manifold.

Fig 9: Cover Lower Intake Manifold Openings
Courtesy of CHRYSLER LLC
If further service is required, cover the lower intake manifold openings to prevent foreign materials from entering the engine.
