PAN, Oil: Removal: Removal

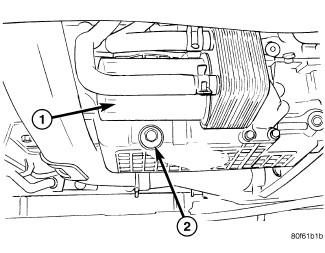

Fig 1: Oil Filter and Drain Plug
GC0114639Courtesy of CHRYSLER LLC
1 - OIL FILTER
2 - DRAIN PLUG
  1. Raise vehicle on hoist.
  2. Drain engine oil (2) and remove oil filter (1).
    Fig 2: Splash Shield
    GC0114640Courtesy of CHRYSLER LLC
    1 - RIGHT MOUNT BOLT ACCESS PLUG
    2 - FASCIA
    3 - SPLASH SHIELD
    4 - CRANKSHAFT BOLT ACCESS PLUG
  3. Remove accessory drive belt splash shield (3).
  4. Turbocharger Equipped Vehicles:  Remove turbocharger to charge air cooler hose assembly. See Engine/Turbocharger System/COOLER and HOSES, Charge Air - Removal .
  5. Turbocharger Equipped Vehicles:  Remove oil cooler connector bolt. DO NOT  disconnect coolant lines from oil cooler. Reposition oil cooler.

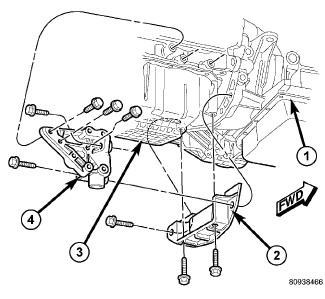

    Fig 3: Structural Collar and Bending Strut - (Automatic Transaxle Equipped)
    GC0114641Courtesy of CHRYSLER LLC
    1 - TRANSAXLE
    2 - STRUCTURAL COLLAR
    3 - OIL PAN
    4 - BENDING STRUT
  6. Remove structural collar (2). See Engine/Engine Block/COVER, Structural Dust - Removal .

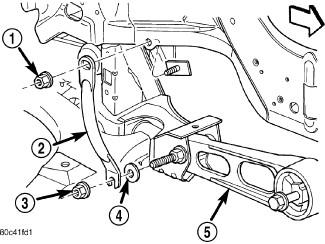

    Fig 4: Pencil Strut
    GC0114642Courtesy of CHRYSLER LLC
    1 - NUT
    2 - PENCIL STRUT
    3 - NUT
    4 - FLAT WASHER
    5 - LOWER TORQUE STRUT
  7. Remove lower torque strut (5). See Engine/Engine Mounting/STRUT, Torque - Removal .
    Fig 5: Oil Pan
    GC0114643Courtesy of CHRYSLER LLC
    1 - OIL FILTER
    2 - OIL PAN GASKET
    3 - OIL PAN
    4 - ADAPTER GASKET
    5 - OIL FILTER ADAPTER
  8. Remove oil filter adapter (5) and gasket (4) .
  9. Remove oil pan (3) and gasket (2) .
  10. Clean oil pan and all gasket surfaces.
