COOLER and LINES, Oil: Installation: Installation

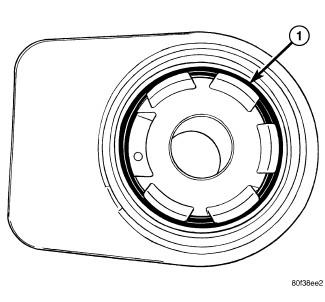

Fig 1: Oil Cooler Seal

Courtesy of CHRYSLER LLC

1. Replace oil cooler seal (1) .

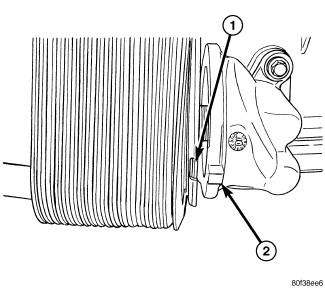

   Fig 2: Oil Cooler Alignment

   Courtesy of CHRYSLER LLC
2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch (1) to tab (2) .

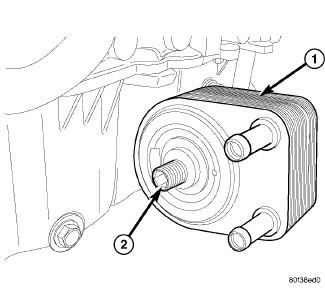

   Fig 3: Oil Cooler Connector Bolt

   Courtesy of CHRYSLER LLC
3. Install oil cooler connector bolt (2). Torque connector bolt to 55 N.m (41 ft. lbs.) .
4. Install oil filter.

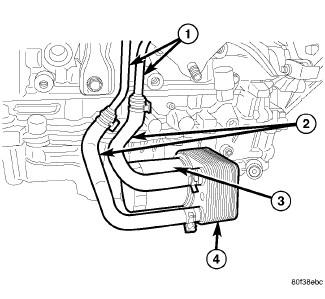

   Fig 4: Oil Cooler and Lines

   Courtesy of CHRYSLER LLC
5. Connect oil cooler coolant hoses (1,2) .
6. Lower vehicle.
7. Fill cooling system (refer to SYSTEM FILLING - GAS ENGINE ).
