INSULATOR, Engine Mount, Left: Removal: Removal

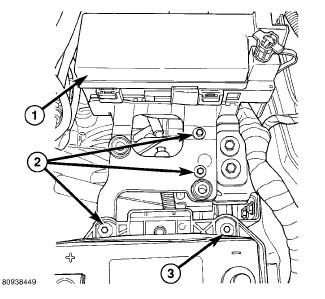

Fig 1: PDC Bracket Attaching Bolts

Courtesy of CHRYSLER LLC

1. Remove air cleaner assembly.
2. Disconnect negative cable from battery.
3. Remove bolts attaching the power distribution center (PDC) bracket (2) to left mount and battery tray (3) .

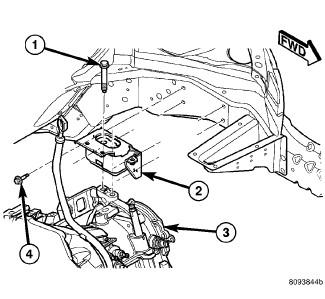

   Fig 2: Left Mount

   Courtesy of CHRYSLER LLC

   1 - BOLT

   2 - LEFT MOUNT

   3 - TRANSAXLE

   4 - BOLT

4. Support transaxle (3) with a suitable jack.
5. Remove mount to transaxle bolts (1) .
6. Remove left mount (2) bracket to body frame rail fasteners .
7. Remove mount (2).
