Connecting Rod - Fitting

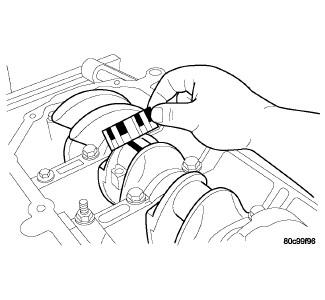

Fig 1: Connecting Rod Bearing Clearance - Typical

Courtesy of CHRYSLER LLC

For measuring connecting rod bearing clearance procedure and use of Plastigage, see Engine - Standard Procedure . For bearing clearance, refer to Engine - Specifications .
NOTE: The rod bearing bolts should not be reused.
Before installing the NEW bolts the threads should be oiled with clean engine oil.
Install each bolt finger tight then alternately torque each bolt to assemble the cap properly.
Tighten the connecting rod bolts using the 2 step torque-turn method. Tighten according to the following values:
CAUTION: Do not use a torque wrench for the second step.
1. Tighten the bolts to 27 N.m (20 ft. lbs.).
2. Tighten the connecting rod bolts an additional 1/4 TURN.

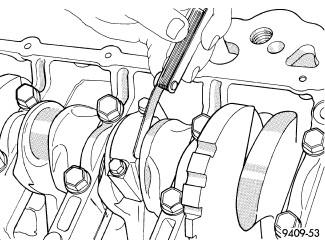

Fig 2: Connecting Rod Side Clearance - Typical
Courtesy of CHRYSLER LLC
Using a feeler gauge, check connecting rod side clearance . Refer to Engine - Specifications .
