ROCKER ARM, Valve: Installation: Installation

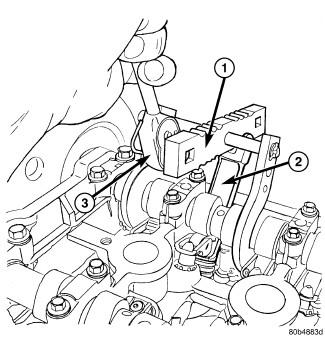

Fig 1: Rocker Arm - Removal/Installation

Courtesy of CHRYSLER LLC

1 - VALVE SPRING COMPRESSOR 8215A

2 - ADAPTER 8436

3 - 3/8" DRIVE RATCHET

1. Lubricate rocker arm with clean engine oil.
2. Using Valve Spring Compressor 8215A (1) and Adapter 8436 (2) slowly depress valve assembly until rocker arm can be installed on the hydraulic lifter and valve stem .
3. Repeat installation procedure for each rocker arm.
4. Install spark plugs.
5. Install cylinder head cover. See Engine/Cylinder Head/COVER(S), Cylinder Head - Installation .
